Carlson RTk5

All-in-One GNSS Rover and Data Collector for Survey and GIS

The Carlson RTk5 is a rugged, integrated GNSS rover and Windows® data collector designed for surveying, stakeout, construction layout, and GIS mapping. Bundled with Carlson SurvPC7, the RTk5 delivers a powerful, field-ready solution that combines advanced GNSS positioning with a familiar Windows workflow.

With 8 GB of RAM and 256 GB of storage, the RTk5 allows users to collect, analyze, and manage data efficiently. When paired with SurvPC7 with Esri®, users can view and update ArcGIS Online databases live in the field, eliminating post-processing and improving decision making.

The RTk5 includes a survey-grade antenna, handheld GNSS option, custom pole and cradle, and a lightweight ergonomic design, making it a versatile, all-in-one solution for modern field crews.

GNSS Capabilities

• Multi-frequency, multi-constellation GNSS support
• (GPS, GLONASS, Galileo, BeiDou, QZSS)
• Carlson’s next-generation Gama RTK engine
• Centimeter-level RTK accuracy
• Fast convergence and initialization times
• Operate on a pole or handheld for GIS workflows

SkyNet RTN Integration

Carlson’s SkyNet RTN delivers RTK corrections across North America using a single login and subscription. Fully compatible with the RTk5 and SurvPC7 for reliable network-based RTK positioning.

Hybrid+ Ready

The RTk5 supports Carlson’s Hybrid+ workflows, allowing GNSS and robotic total station measurements to be used together.

Hybrid+ features include:

• Follow Me GNSS-guided robotic tracking
• Smart Lock automatic prism locking
• Smart Staking GNSS-to-robotic transitions
• Cross Check GNSS and total station verification
• Hybrid-Resection for fast, flexible instrument setup

Performance

• Quad-core Intel® Pentium Silver processor
• Windows® 10 IoT Enterprise operating system
• 8 GB RAM and 256 GB flash storage
• Optimized for Carlson SurvPC7 field performance

Battery and Power

• 10+ hours of operation on a single charge
• Hot-swappable removable battery
• Optional extended battery for 15+ hours
• Reliable performance in cold conditions

Display and Input

• Large 8-inch high-visibility display
• Sunlight-readable WXGA resolution
• Capacitive touchscreen usable with gloves and stylus
• Programmable physical keys and trigger buttons

Connectivity

• Long-range Bluetooth®
• Dual-band Wi-Fi®
• Integrated 4G LTE
• USB and audio ports

Rugged Field Design

• IP65 dust and water resistance
• MIL-STD-810G shock and vibration protection
• Lightweight, ergonomic form factor
• Designed for demanding field environments
• Backed by a 3-year warranty

How it fits into your workflow

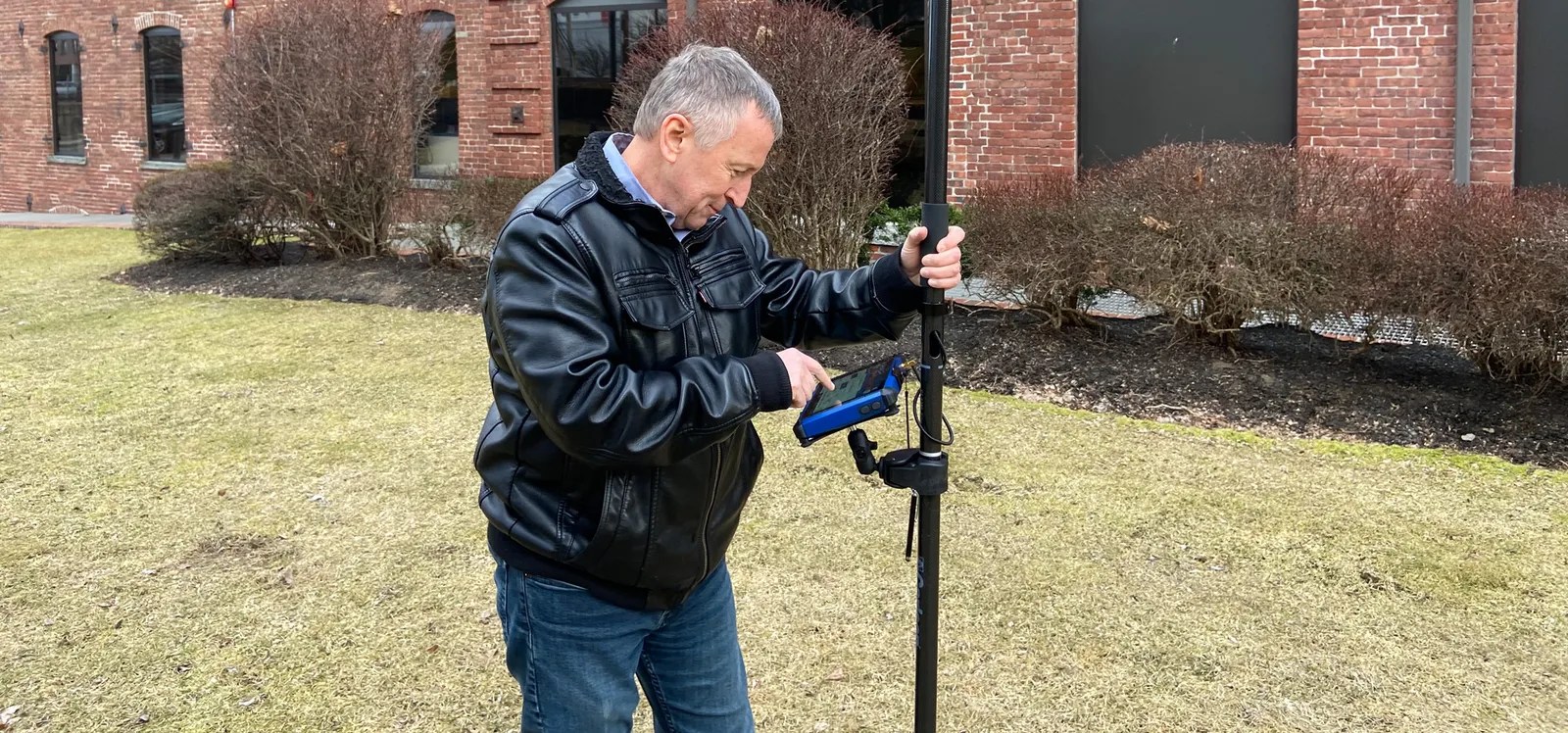

Use the Carlson RTk5 as a complete GNSS rover and data collection solution for surveying, layout, and GIS. Its integrated design reduces setup time, supports hybrid GNSS-robotic workflows, and keeps field and office data fully connected through Carlson SurvPC7.
