Rugged, High-Performance Data Collection for Surveying and GIS
The Carlson RT5 is a fast, rugged Windows® data collector built for surveying, stakeout, construction layout, and GIS mapping. Bundled with Carlson SurvPC7, the RT5 delivers reliable field data collection with seamless office integration.
With 8 GB of RAM and 256 GB of storage, the RT5 provides the performance needed to collect, process, and analyze data efficiently. When paired with SurvPC7 with Esri®, the RT5 allows users to view and update ArcGIS Online databases live in the field, eliminating post-processing and improving decision making.

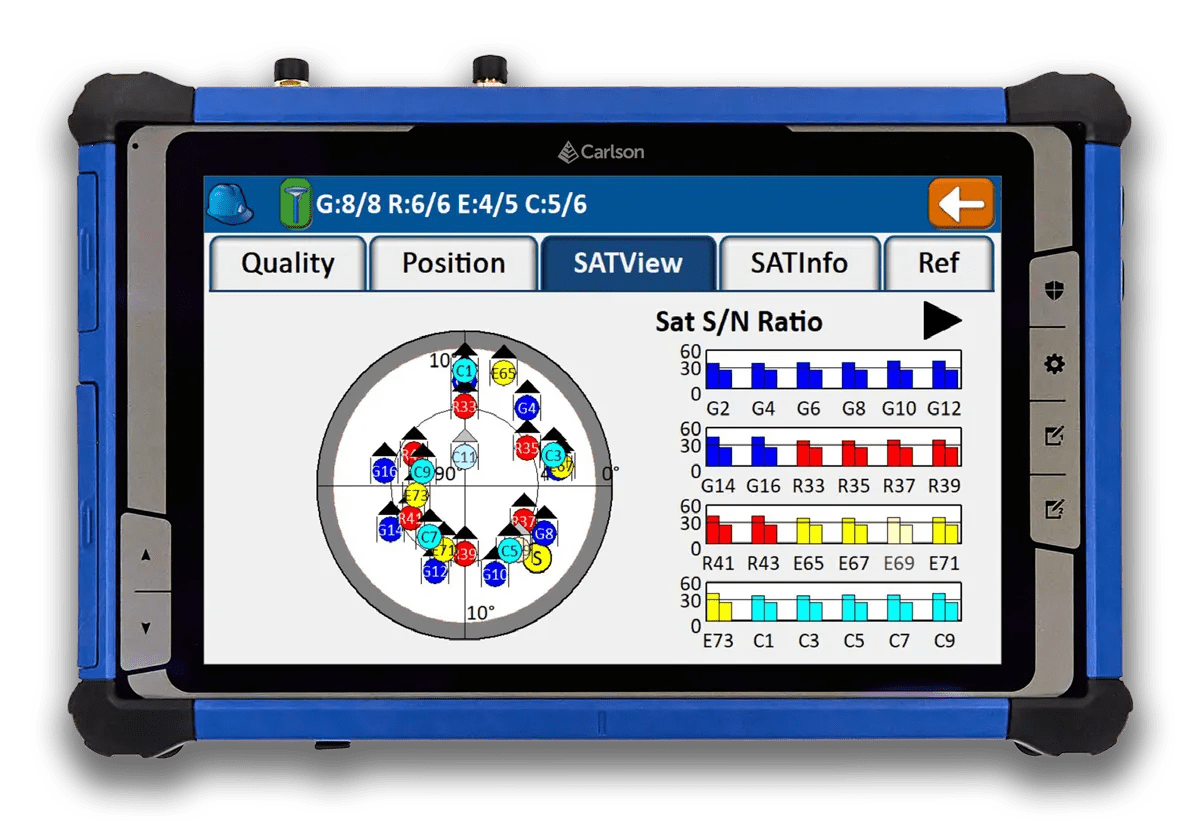

GNSS Capabilities (RTk5 Solution)
- Multi-frequency, multi-constellation RTK GNSS support
- (GPS, GLONASS, Galileo, BeiDou, QZSS)
- Carlson’s proprietary Gama next-generation RTK engine
- Centimeter-level accuracy with live data capture
- Direct integration with Esri databases
- Balanced, ergonomic design
- Operate handheld or on a pole for flexible GIS and survey workflows
Performance
- Windows® operating system for office-to-field workflows
- 8 GB RAM and 256 GB flash storage
- Optimized for Carlson SurvPC7 performance
Expandable Battery
- 10+ hours of all-day operation
- Optional extended battery for 15+ hours
- 5-minute hot swap capability
Connectivity
- Long-range Bluetooth®
- Dual-band Wi-Fi®
- USB 3.0 connectivity
- Integrated 4G LTE (GSM)
Field-Tested Rugged Design
- Operates in temperatures from 14°F to 122°F (-10°C to 50°C)
- Dustproof and water resistant (IP65 rating)
- Designed to meet MIL-STD-810G standards
- Built for demanding field environments
- Backed by a 3-year warranty
High-Visibility Display
- Large 8-inch display
- 800 nits brightness for excellent sunlight readability
- Capacitive touchscreen
- Digital pen support for precision input
How it fits into your workflow
Use the Carlson RT5 as a dependable field data collection platform paired with Carlson SurvPC7. From traditional surveying and stakeout to GIS mapping and live ArcGIS updates, the RT5 supports accurate, efficient workflows while remaining durable enough for tough jobsite conditions.
